Conditional attribute display logic in C#Bot


I want to configure my CRUD display to show, hide or make read-only certain attributes depending on the context the CRUD display is being shown in.

Entity Model

The entity model has a few basic users with user extension and an entity named Application which has a workflow extension. All associations are one-to-many and have source optional and target optional set to true.

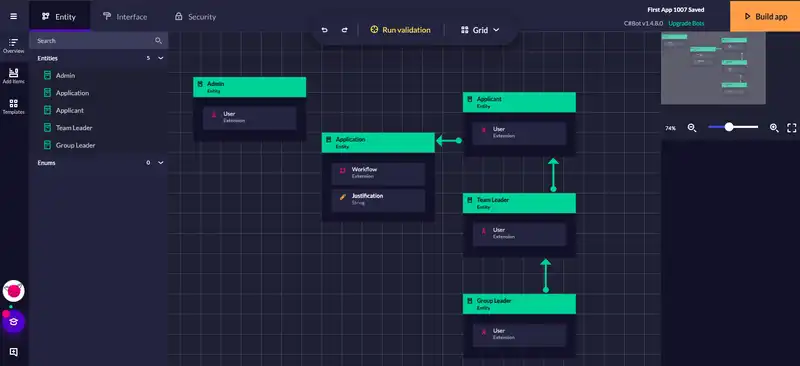

Entity Diagram example

Interface Model

The Interface model has a page Dashboard, which has Is Home Page set to true. The Dashboard page also has a Custom Tile.

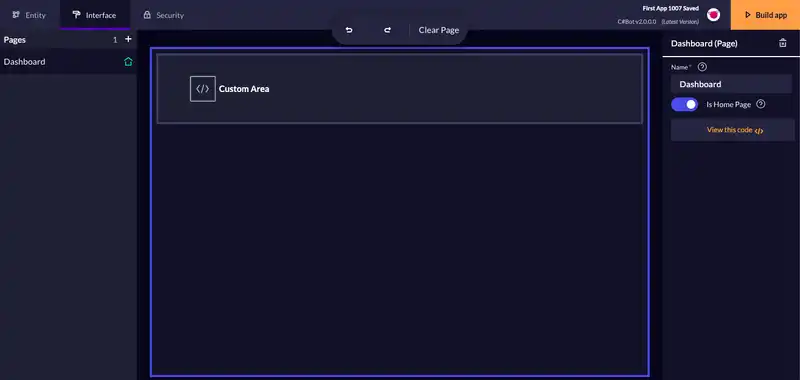

UI custom tile example

Security Model

The user entity Admin has full permissions, no visitor access is given to the site, and in general the security is very relaxed.

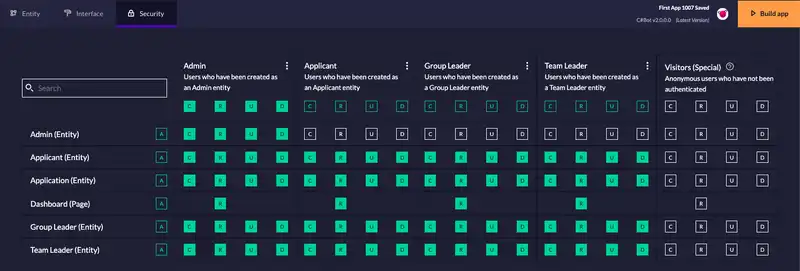

Security Diagram Example

Front-end Code


The bot-written component EntityAttributeList is the CRUD display for an Entity. In the code below we render the EntityAttributeList and tell it what entity we want to display. In this case, it’s an ApplicationEntity called model that we instantiate a few lines previously. We also provide a title, a formMode(are we creating, viewing or editing?) and the modelType which says tell the component what type the model we passed in is.

By default, the attributes will be displayed according to the formMode prop, however this can be overwritten for each attribute by using the optional prop attributeBehaviours. attributeBehaviours takes an array of IEntityAttributeBehaviour which is an object with a name and behaviour property. name specifies the name of the attribute you are configuring, and behaviour specifies how to display the attribute. The options are VIEW (for read only) EDIT (so the attribute can be set) and HIDE (which will prevent the attribute from being displayed at all).

Using the attributeBehaviours prop, we can conditionally show, hide or make read-only any attribute on the model we pass to EntityAttributeList.


In the Interface Diagram on the Codebots Platform we specified a Page Dashboard (which is our homepage) with a custom tile called Dashboard. We can configure this custom tile to display a CRUD view described above.

  1. Open the file DashboardTile.tsx.
  2. Find the protected region Add any extra imports here and turn it on
  3. Add the lines of code shown below:

     // % protected region % [Add any extra imports here] on begin
     import EntityAttributeList, {IEntityAttributeBehaviour} from "../Components/CRUD/EntityAttributeList";
     import { ApplicationEntity } from 'Models/Entities';
     // % protected region % [Add any extra imports here] end
  4. Find the protected region Override contents here and turn it on
  5. Add the lines of code shown below:

     // % protected region % [Override contents here] on begin
             const attributeBehaviours: IEntityAttributeBehaviour[] = [
                     name: 'justification',
                     behaviour: AttributeFormMode.VIEW
             const model = new ApplicationEntity();
             contents = (
                         title={`Create New Application`}
             // % protected region % [Override contents here] end

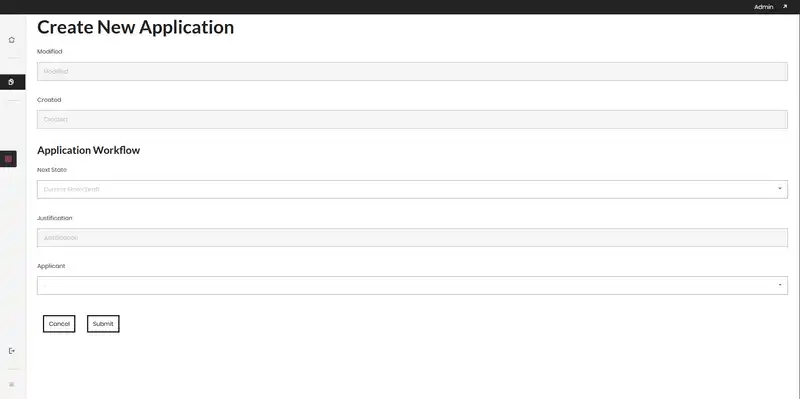

In the image below, you can now see that the Justification attribute is displayed as read-only.
